Specification:

Features:
JDS6600 series function generator cangenerate multiple waveforms such as sine wave, square wave, triangle wave,pulse wave, and arbitrary wave.
The frequency range up to 60MHz, with dutycycle adjustment, sweep frequency, frequency signal frequency and counterfunction.
The output signal, amplitude, and frequency can be displayed simultaneously.
Theseries signal generator has excellent amplitude and frequencycharacteristics, the appearance of this instrument is exquisite and beautiful.
This instrument iswidely used in factories, schools, research institutes and laboratories.
Specifications:
JDS6600-15M JDS6600-30M JDS6600-40M JDS6600-50M JDS6600-60M
Sine wave frequency range 0~15MHz 0~30MHz 0~40MHz 0~50MHz 0~60MHz
Square wave frequency range 0~15MHz 0-25MHz 0-25MHz 0-25MHz 0-25MHz
Triangle wave frequency range
Pulse wave frequency range 0~6MHz 0~6MHz 0~6MHz 0~6MHz 0~6MHz
TTL digital wave frequency range
Arbitrary frequency range
Pulse width adjustment range 100nS~4000S 50nS~4000S 40nS~4000S 30nS~4000S 25nS~4000S
Square wave rise time ≤25ns ≤15ns ≤10ns ≤10ns ≤10ns
Minimum frequency resolution 0.01uHz（0.00000001Hz）
Frequency accuracy ±20ppm
Frequency stability ±1ppm/3hours ±1ppm/3 hours
Waveform characteristics
Waveform type Sine, Square, pulse (adjustable duty cycle, precise adjustment of pulse width and period), triangular wave, partial sine wave, CMOS wave, DC level (set DC amplitude by adjusting offset), half wave, full Wave, positive staircase wave, anti-ladder wave, noise wave, exponential rise, exponential drop, multi sonic wave, Symplectic pulse and Lorenz pulse and 60arbitrarywaveforms
Wave length 2048 points
Waveform sampling rate 266MSa/s
Waveform vertical resolution 14-bits
  Sine wave Harmonic Suppression ≥45dBc(
Total harmonic distortion
Square wave and pulse wave Overshoot ≤5%
Pulse wave Duty cycle adjustment range 0.1%~99.9%
Partial sine wave Duty cycle adjustment range 0.1%~99.9%
Sawtooth wave Linearity ≥98%(0.01Hz~10kHz)
Output characteristics
Sine wave amplitude range Frequency ≤ 10MHz 10MHz ≤ Frequency ≤ 30MHz 30MHz ≤Frequency
2mVpp~20Vpp 2mVpp~10Vpp 2mVpp~5Vpp
Square wave, Triangle wave amplitude range Frequency ≤ 10MHz 10MHz ≤Frequency ≤25MHz
2mVpp~20Vpp 2mVpp~5Vpp
Amplitude resolution 1mV
Amplitude stability ±0.5%/5 hours
Flatness of amplitude ±5%(10MHz)
Waveform output
Output impedance 50Ω±10% (typical)
Protection All signal outputs can work within 60 when the load is short-circuited.
DC offset
Offset adjustment range Output amplitude > 2V   0.2V   0
-9.99V~9.99V -2.5V~2.5V -0.25V~0.25V
Offset resolution 0.01 V
Phase characteristics
Phase adjustment range 0~359.9o
Phase resolution 0.1o
TTL/CMOS output
Low level
High level 1V~10V
Level rise/fall time ≤20ns
 External measurement function
Frequency meter function Frequency measurement range 1Hz~100MHz
Measurement accuracy Gate time 0.01S~10s continuous adjustment
Counter function Counting range 0-4294967295
Coupling method DC and AC coupling methods
Counting method Manually
  2Vpp~20Vpp
Pulse width measurement 0.01us resolution, maximum measurable 20s
Period measurement 0.01us resolution, maximum measurable 20s
Sweep function
Sweep channel CH1 or CH2
Sweep type Linear sweep, logarithmic sweep
Sweep time 0.1s~999.9s
  Setting range Any setting between the maximum output frequency of the corresponding model of the starting point (0.01Hz) and the end point
  Sweep direction Forward, reverse and round trip
Bursting function
Number of pulses 1-1048575
  Burst mode Manual burst, CH2 burst, external burst (AC), external burst (DC)
 General specifications

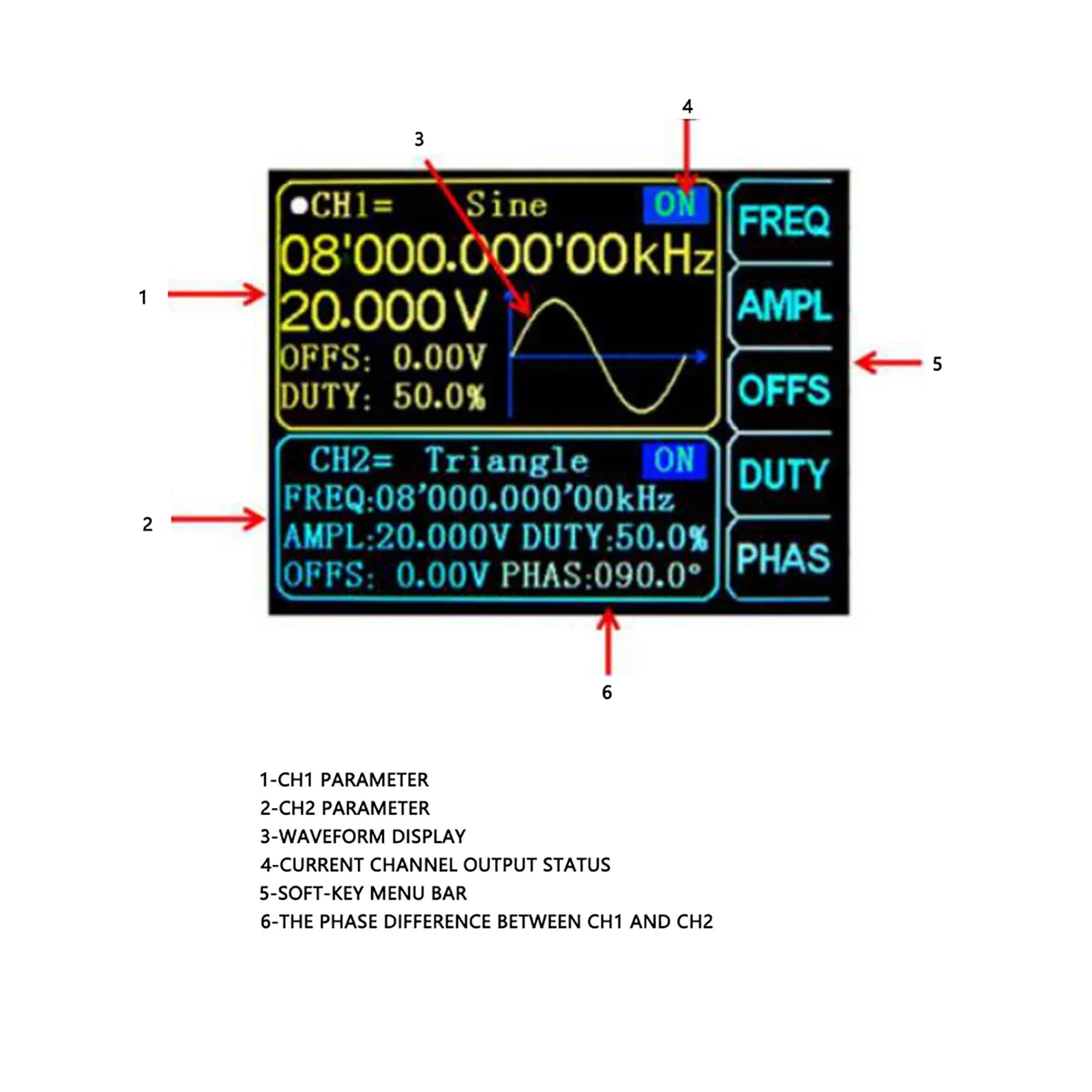

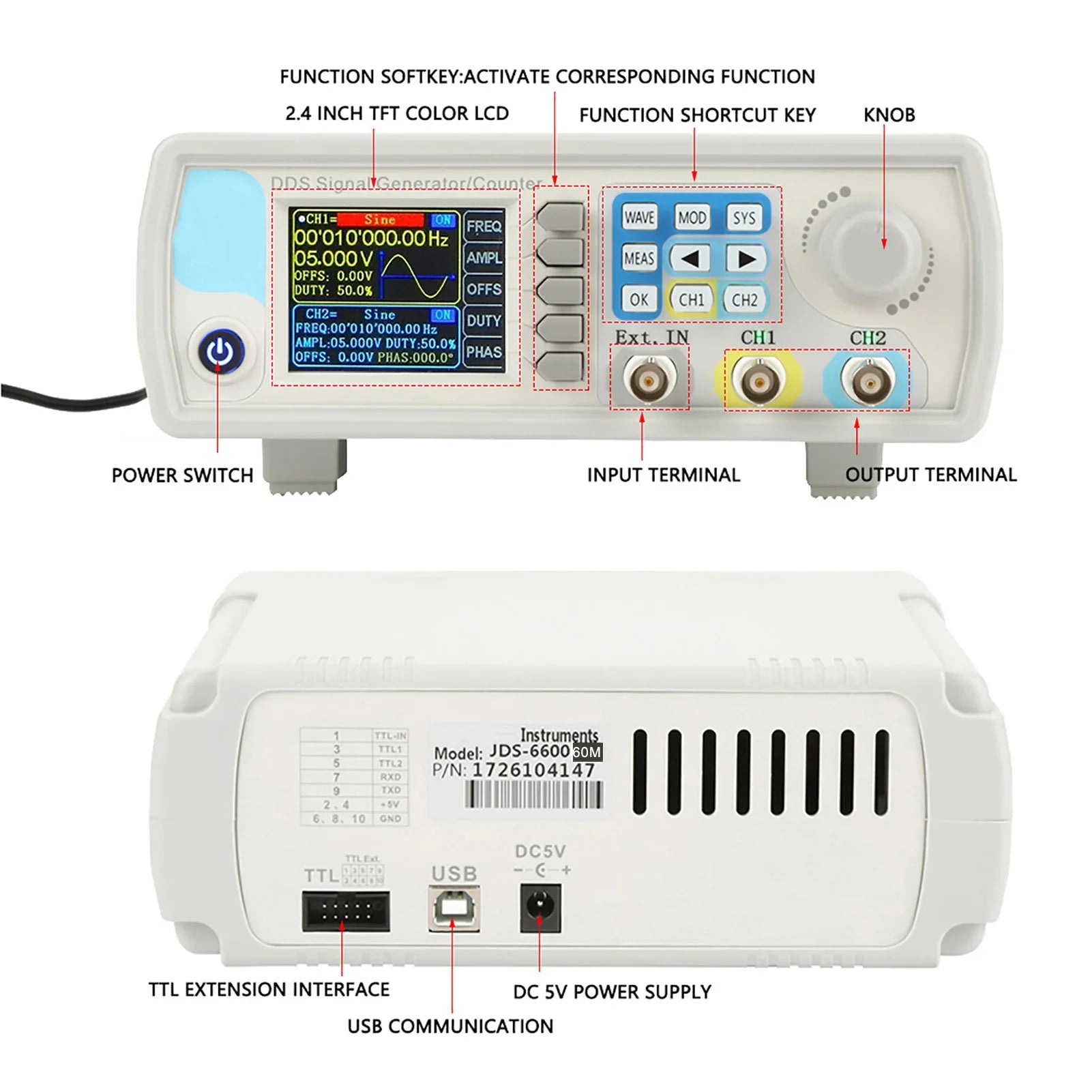

Display Display type 2.4 inch TFT color LCD display
Store and load Quantity 100
Position 00 to 99 (00 memory location parameter is loaded by default as power on)
Arbitrary wave Quantity 1 to 60 total 60 groups (15 groups by default as power on)

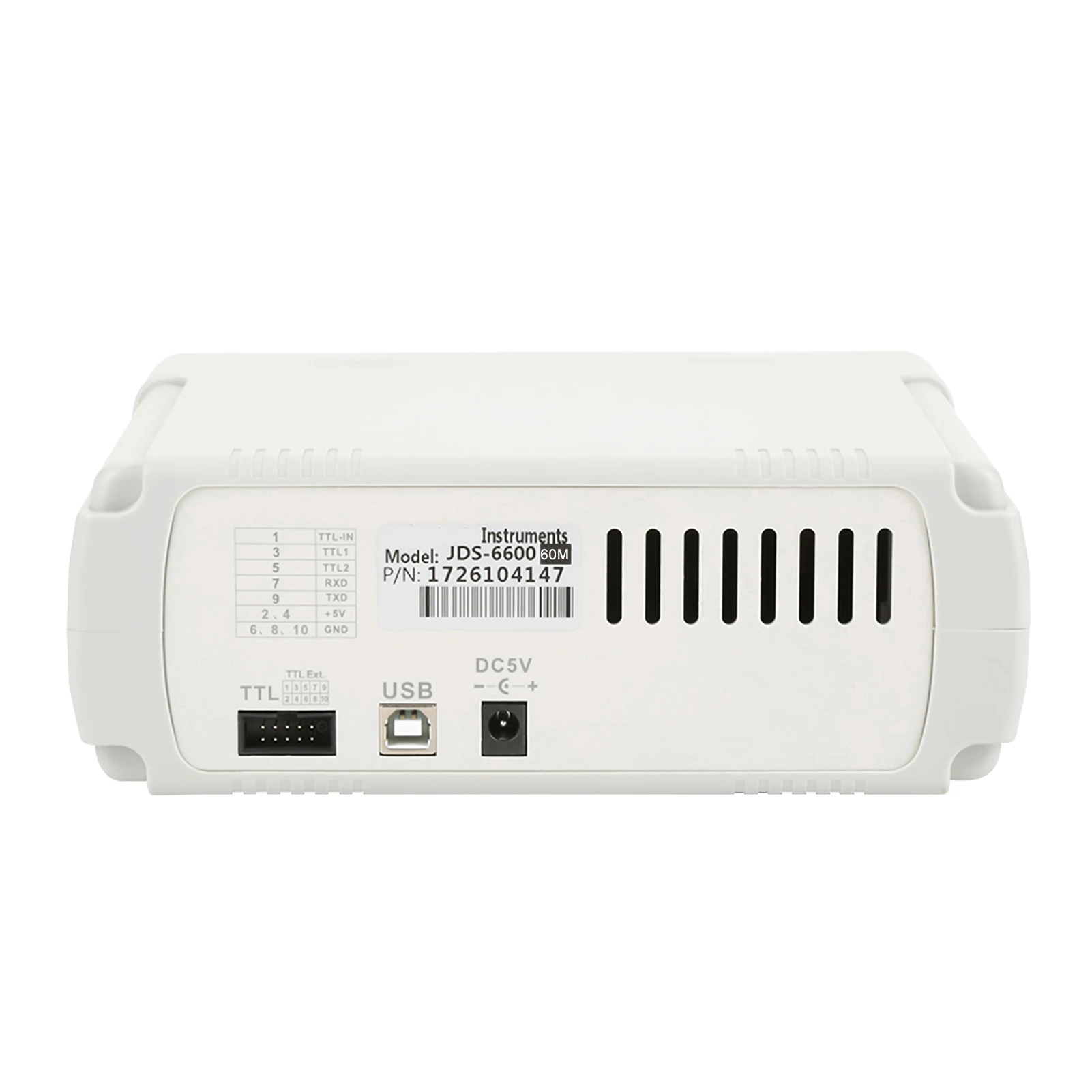

Interface Interface mode USB to serial interface
Extension interface With TTL level mode serial interface for user secondary development
Communication speed Adopt standard 115200bps
Protocol Using the command line, the protocol is made public

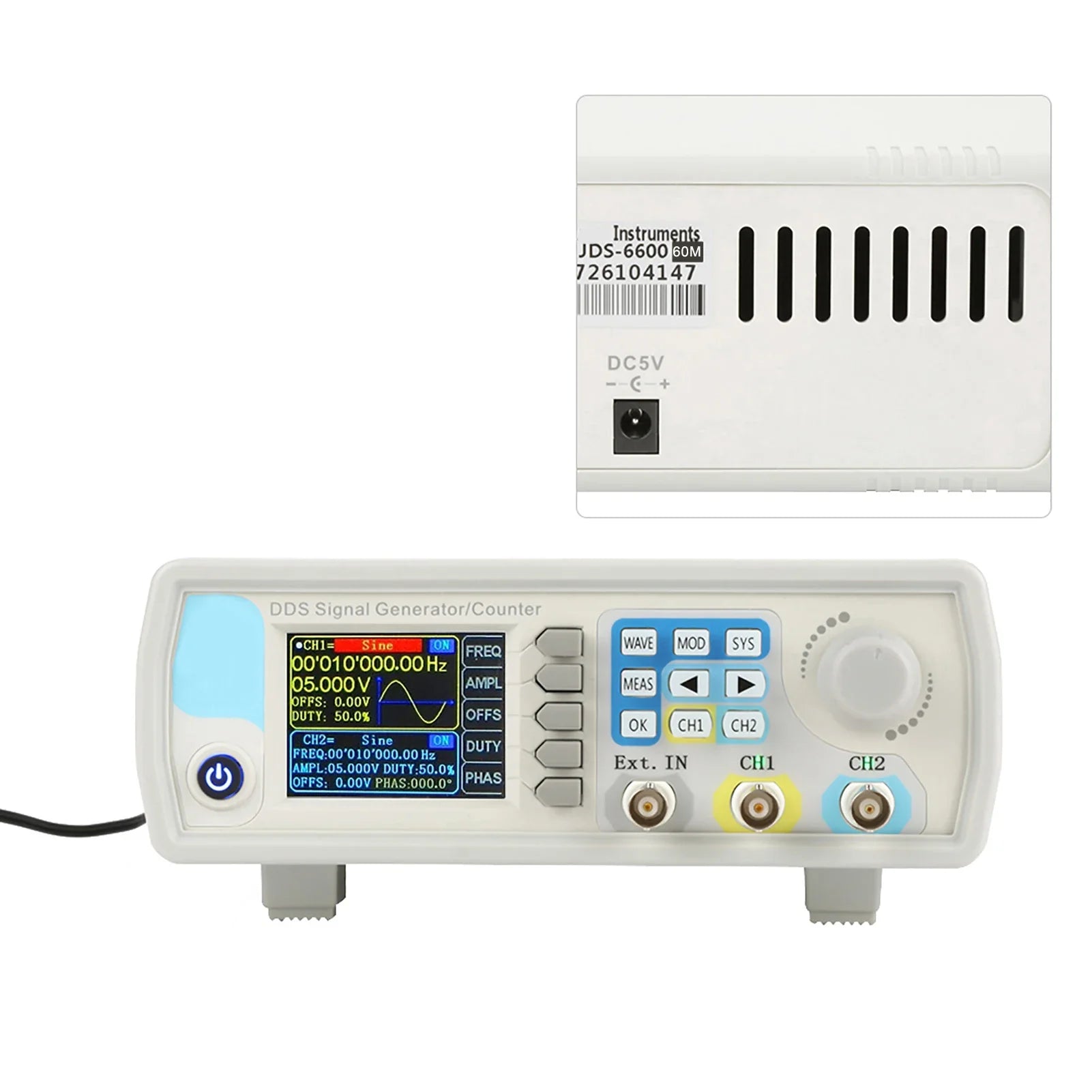

Power supply DC5V±0.5V
Manufacturing technology Surface mount technology, large-scale integrated circuits, high reliability, long service life
Prompt tone Users can turn on or off by setting program
Operating characteristics All key operations, knob continuous adjustment
Environmental conditions Temperature: 0~40℃ Humidity: Weight: 1087g(approx.)

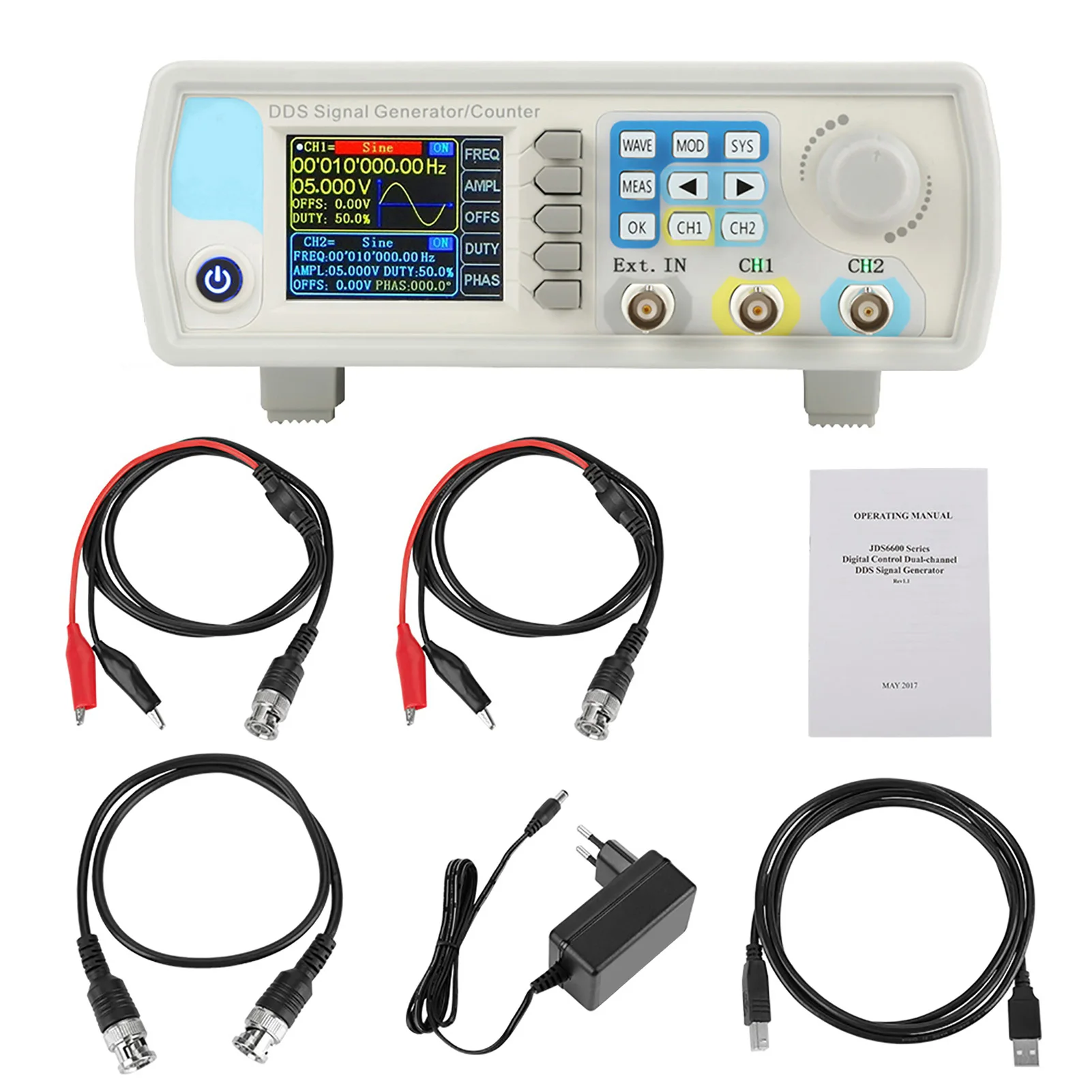

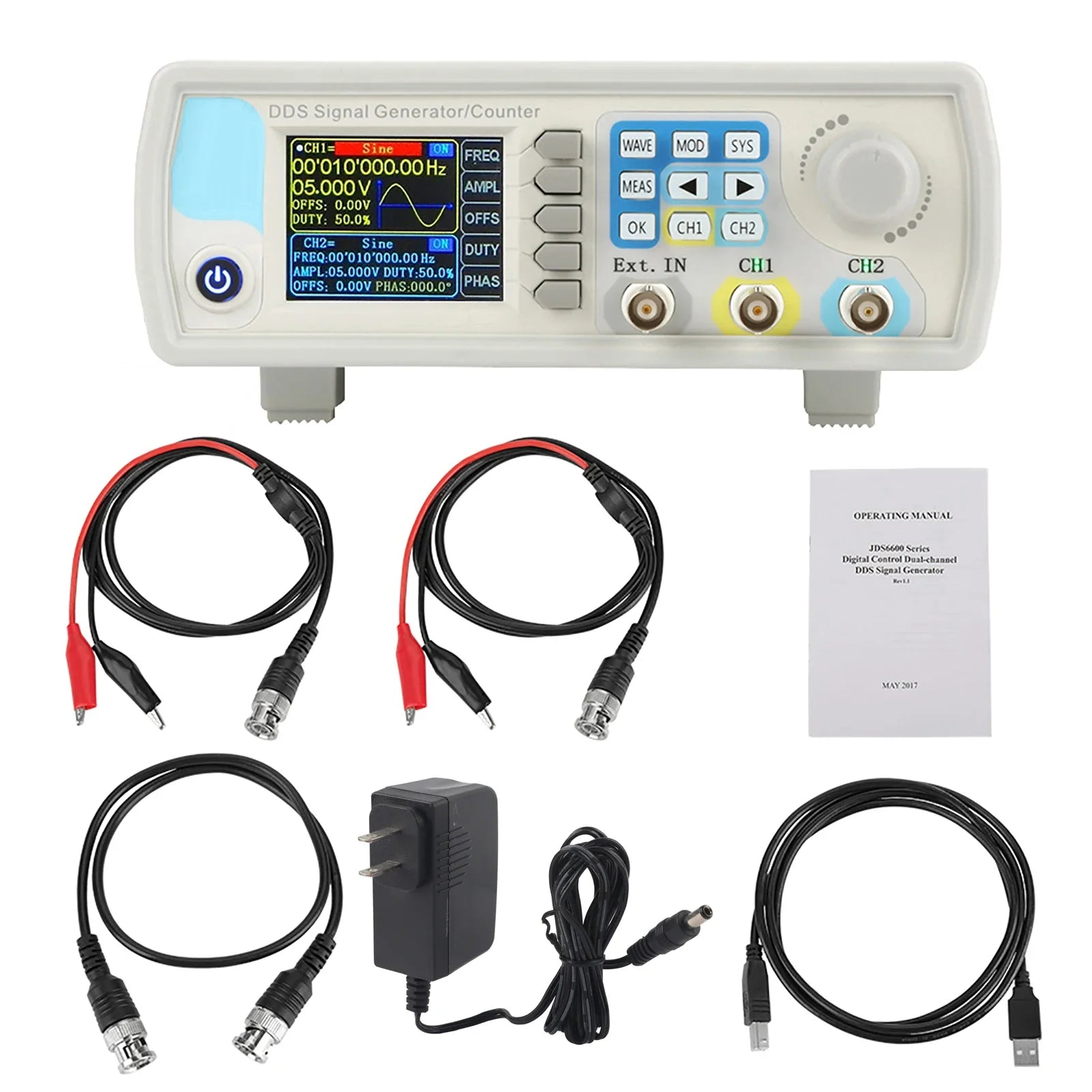

Package Includes:
1 x JDS6600Dual-channel Signal Generator
1 x Power Adapter

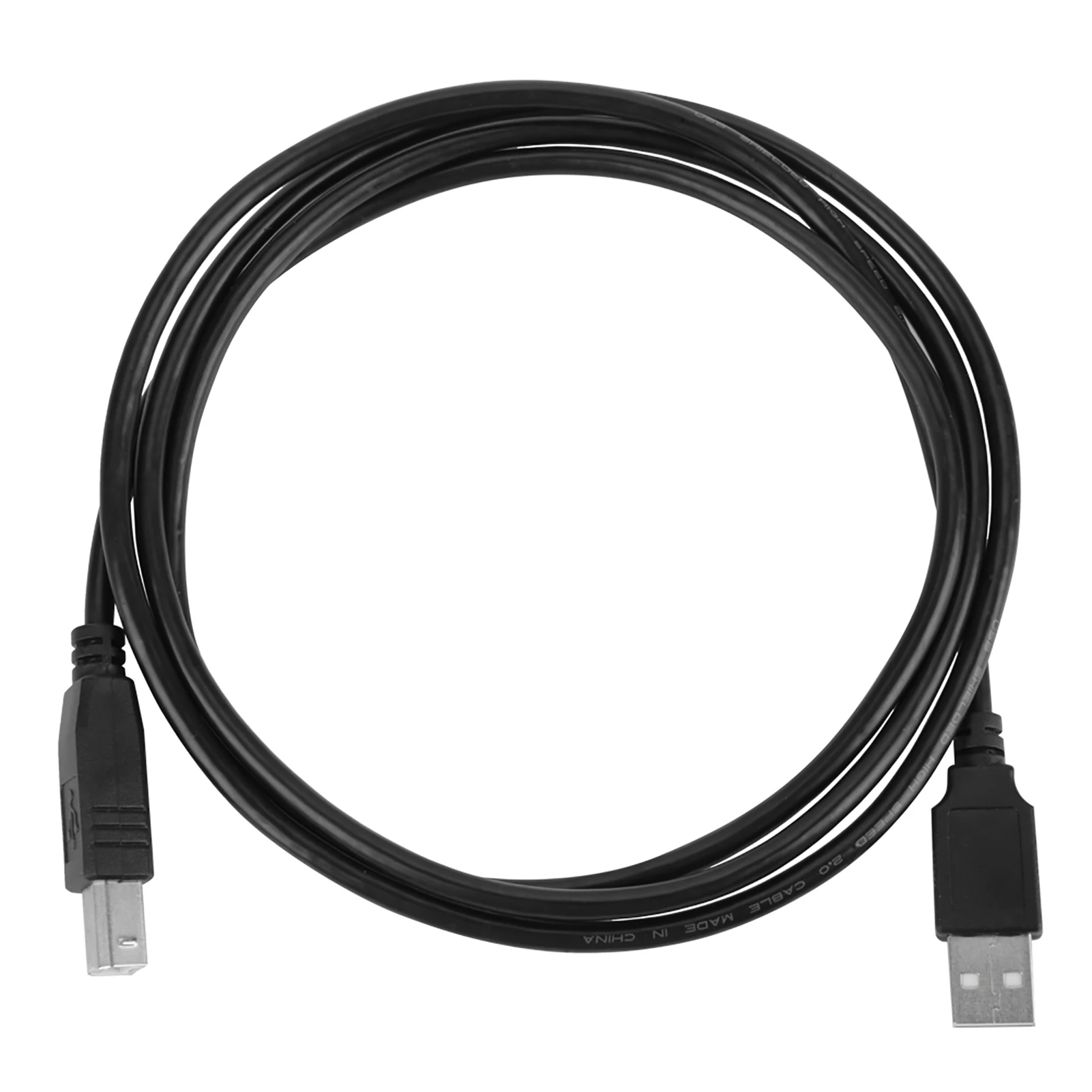

1 x USB Cable
2 x Signal Connecting Cables
1 x English User Manual
1 x BNC Cable
Note:
Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
