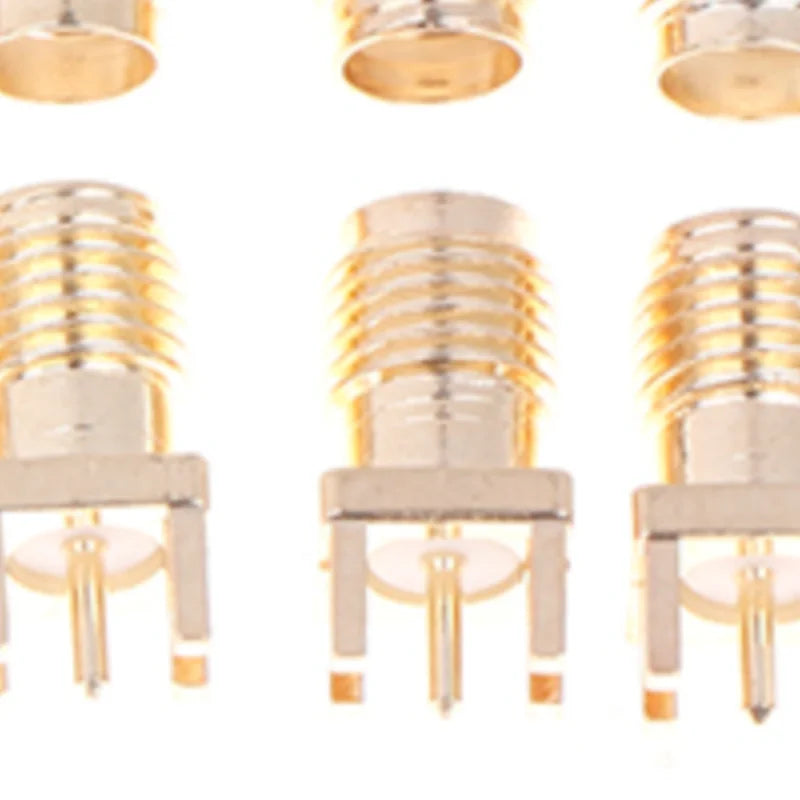

SMA Female Jack PCB Edge Mount Solder Adapter Connector | 10-Pack Gold Plated RF Coaxial

These SMA female jack PCB edge mount solder adapters provide a reliable connection for your RF projects. Each connector features a gold-plated metal body for stable signal transfer and long-lasting performance. This 10-pack gives you plenty of spares for repairs, builds, and testing setups.

Each adapter measures 1.5 by 1 cm, making them compact enough for tight spaces on a circuit board. The edge mount design allows for easy soldering directly onto the PCB edge, saving you board space and simplifying your layout. The gold color indicates a corrosion-resistant finish that maintains conductivity over time.

Whether you are working with antennas, wireless modules, or test equipment, these connectors offer a secure fit for SMA male cables. The 50-ohm impedance rating makes them suitable for most standard RF applications. Soldering these adapters is straightforward, even for hobbyists with basic soldering experience.

Each connector is built from durable metal to withstand repeated plugging and unplugging. The 10-piece quantity ensures you have enough for multiple projects or replacements. These adapters help you create clean, professional-looking connections without bulky adapters or extra cabling.

Key Features and Benefits

- Gold-plated metal construction that resists corrosion and ensures low signal loss

• Compact 1.5 by 1 cm size that fits easily into tight PCB layouts

• Edge mount design that simplifies soldering and saves board space

• 10-piece pack that provides value and convenience for multiple builds

• SMA female interface that works with standard SMA male connectors

Who Is This For

- Hobbyists building or repairing RF circuits and antenna systems

• Engineers prototyping wireless modules or test fixtures

• Technicians needing spare connectors for maintenance or upgrades

• Anyone replacing damaged SMA jacks on PCB-based equipment

Usage Scenario

Mark was troubleshooting a weak Wi-Fi signal from his custom router build. The original SMA connector had broken off the PCB. He ordered these edge mount adapters, soldered one in place within minutes, and reconnected the antenna. Signal strength returned to normal, and the gold-plated connection felt more secure than the original. The remaining nine adapters went into his parts drawer for future projects.

Micro Comparison

Compared to bulkier panel-mount SMA connectors, these edge mount adapters take up less space and require no additional mounting hardware. They solder directly to the PCB edge, which reduces the need for extra cables or pigtails. For compact builds where every millimeter counts, these adapters offer a cleaner and more direct connection solution.

Specifications

- Material: Metal with gold plating

• Connector Type: SMA Female Jack

• Mount Type: PCB Edge Mount

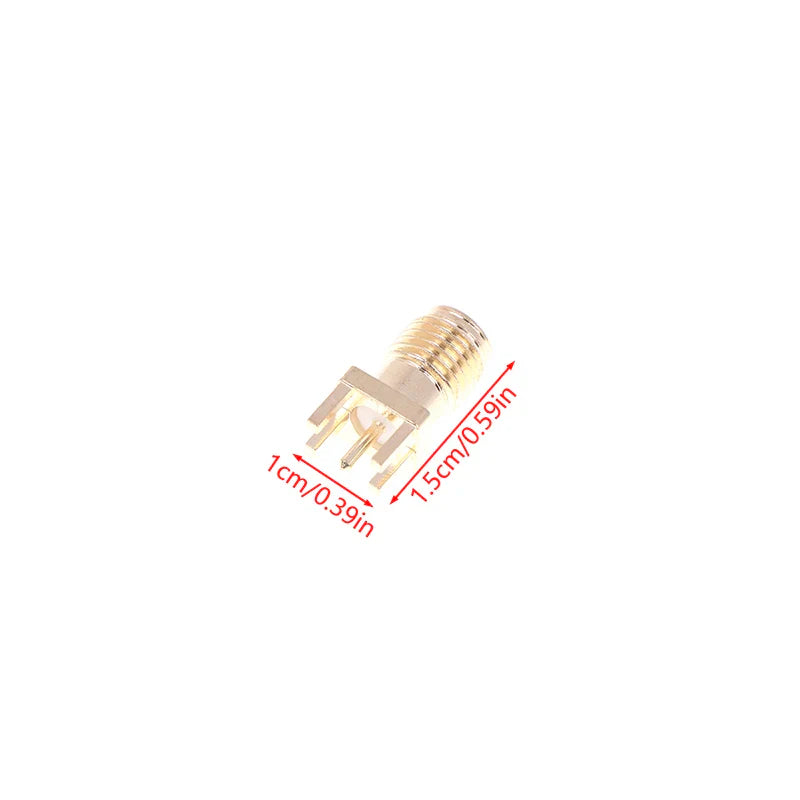

• Size: 1.5 x 1 cm / 0.59 x 0.39 in

• Color: Gold

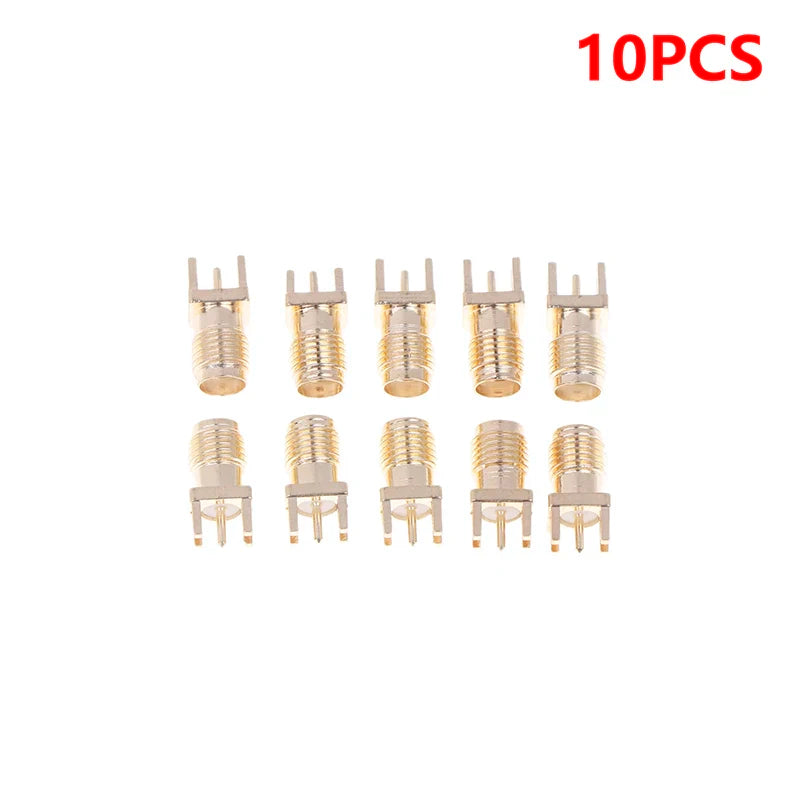

• Quantity: 10 pieces

Please allow 1-3 mm / 0.04-0.12 in difference due to manual measurement.

Package Includes

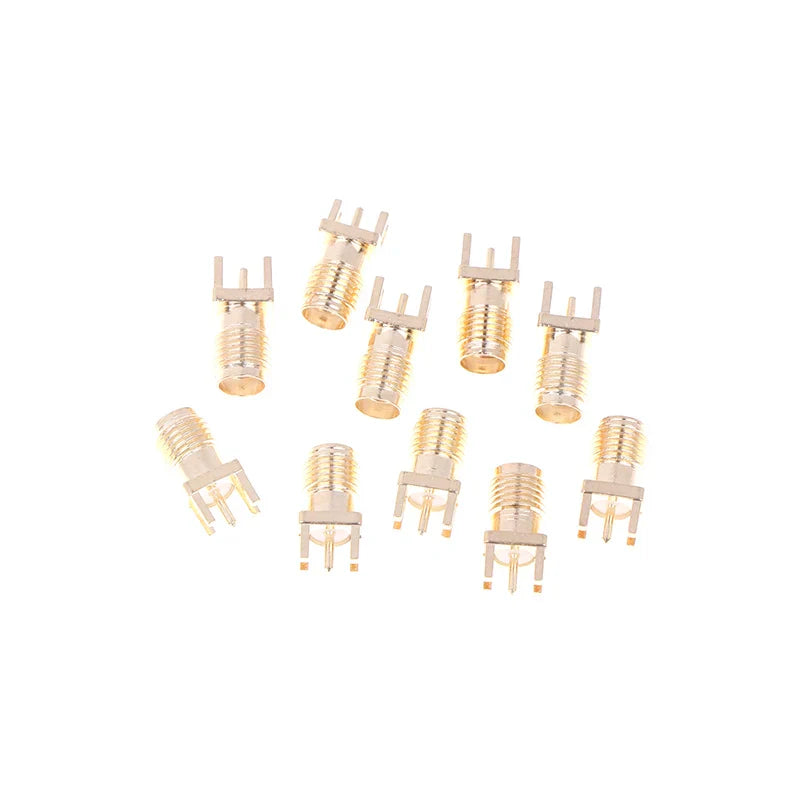

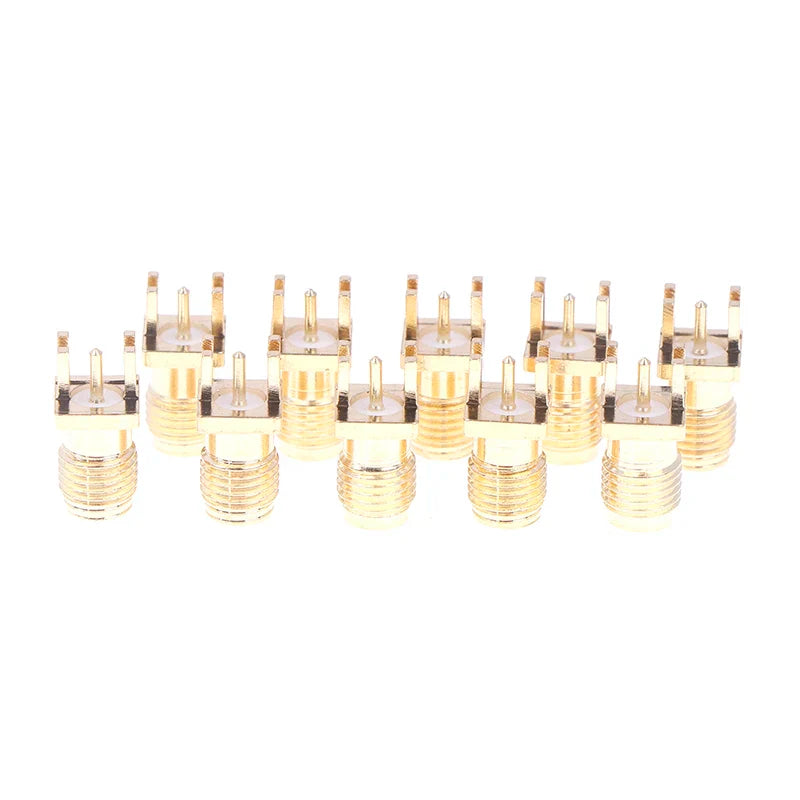

- 10 x SMA Female Jack PCB Edge Mount Solder Adapter Connectors

Why You Will Love It

You get ten reliable connectors in one pack, so you always have spares when you need them. The gold-plated finish gives you confidence in signal quality and long-term durability. These adapters make your soldering work look clean and professional without extra effort.

Questions and Answers

Question: What is the impedance of these SMA connectors?

Answer: These connectors are designed for 50-ohm RF applications, which is standard for most wireless and test equipment.

Question: Can I solder these directly to a PCB without a breakout board?

Answer: Yes, the edge mount design allows direct soldering to the edge of a PCB. No extra adapter board is needed.

Question: Are these connectors compatible with standard SMA male cables?

Answer: Yes, the SMA female jack accepts standard SMA male connectors commonly used on antennas and test leads.

Question: What tools do I need to install these adapters?

Answer: You need a soldering iron and solder. Basic soldering skills are sufficient for a secure connection.

Question: Will these fit a 1.6 mm thick PCB?

Answer: Yes, these edge mount adapters work well with standard 1.6 mm thick PCBs commonly used in hobby and professional projects.
